Spacecraft in low Earth orbits experience significant orbital perturbations due to atmospheric forces (drag and lift). Drag acts as a dissipative force in the velocity direction, which reduces the orbit's size (semi-major axis), and hence shortens the orbital period. As the orbit is further restricted, the drag force becomes amplified due to the increased atmospheric density. Lift provides an outward force to the orbit. In FreeFlyer, forces due to Atmospheric Drag and Lift use the same density model.
The formulas used for calculating the forces due to Drag and Lift are:
|
(1)
(2)
|
Where:
•CD ≡ Spacecraft coefficient of drag •CL ≡ Spacecraft coefficient of lift •AD ≡ Spacecraft drag area •AL ≡ Spacecraft lift area •ρ ≡ Density at Spacecraft's current location (depends on atmospheric density model in use, see below) •vrel ≡ Magnitude of Spacecraft velocity relative to the rotating atmosphere
•v ≡ Spacecraft velocity vector in ICRF frame •ωE ≡ Earth spin axis vector in ICRF frame •R ≡ Spacecraft position vector in ICRF frame •UD ≡ Unit vector in the vrel direction •UL ≡ Unit vector in the vrel x (R x vrel) direction |
There are several Atmospheric Density Models available in FreeFlyer:
If desired, the user can also define custom density models or use Schatten Solar Flux files with the Jacchia-Roberts drag type.
In addition to choosing a density model, FreeFlyer also allows you to choose whether to enable or disable Lift or Drag, and to specify a density scale factor if desired:
Enabling Lift and/or Drag

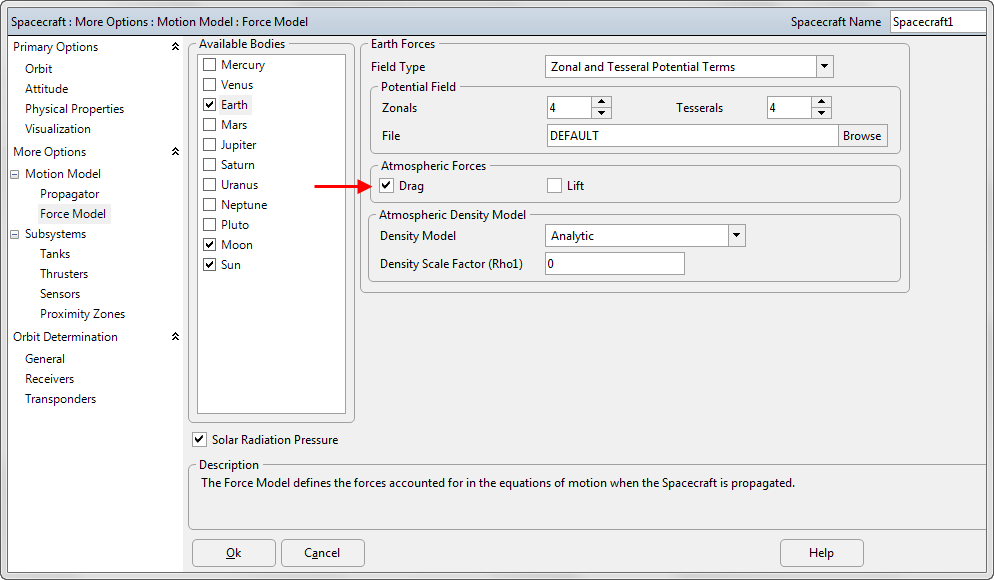

By default, drag effects will be included in a Spacecraft's Force Model, but not lift. If drag is enabled, FreeFlyer will calculate and apply drag forces to the propagation so long as the Spacecraft is within the Earth’s atmosphere, regardless of its central body. This behavior also applies to lift. You can change these settings by editing the Spacecraft, proceeding to the Force Model page, and selecting Earth from the list of celestial bodies. Then, enter use the Lift and Drag checkboxes shown in the image below to enable or disable each force.
To enable or disable lift or drag via FreeForm script, use the syntax shown below:
Alias fm = (Spacecraft1.Propagator AsType RK89).ForceModel; // This alias is used to shorten the script examples below
// To enable Lift and Drag fm.Drag = 1;
// To disable Lift and Drag fm.Drag = 0; |
Spacecraft.Accelerations is an array containing the accelerations due to various forces on the Spacecraft and can be used to view the drag or lift forces acting on a Spacecraft. The example below shows how to view force contributions from each source. The dimension of the Accelerations array is dependent on the Spacecraft Force Model.
For i = 0 to Spacecraft1.Accelerations.Count-1;
// Report the value of each acceleration component Report Spacecraft1.Accelerations[i].Description, Spacecraft1.Accelerations[i].Acceleration;
End; |
Setting the Density Scale Factor
In addition to the nominal atmospheric density discussed in the pages linked above, FreeFlyer allows you to modify the density profile via the density scale factor, Rho1 (ρ1). This property is set to zero by default. FreeFlyer computes an effective density based on the following equation:
|
(4) |
Where:
•ρ ≡ Effective density •ρ0 ≡ Nominal density •ρ1 ≡ Density scale factor |

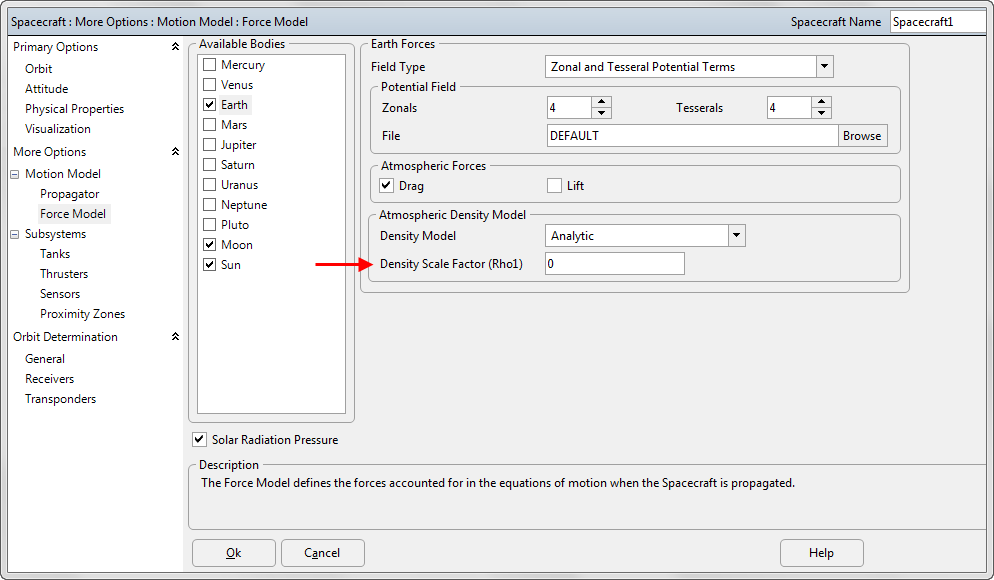

To set the density scale factor via the Spacecraft object editor, edit the Spacecraft, proceed to the Force Model page, and select Earth from the list of celestial bodies. Then, enter a value in the Rho1 numeric entry field shown in the image below.
To set the density scale factor via FreeForm script, use the following syntax:
fm.Rho1 = 0; |
Setting the scale factor via FreeForm script allows you to update the value at each Step command if desired. The Rho1 Sigma (ForceModel.Sigma_Rho1) is the uncertainty in the density scale factor used by the OrbitDetermination object.
