Description

The Update command refreshes the items displayed in a Window object to show their current states. For more information, see the Generating Output Guide.





Syntax

While (mySpacecraft.ElapsedDays < 2);
    Step mySpacecraft;
    Update myViewWindow;
    Update myWatchWindow;
    Update myPlotWindow;
    Update myDataTableWindow;
End;





Details

•An Update command is often used within a While loop that contains the Step command, or inside a WhileStepping or WhileManeuvering loop.

•The specified window is updated whenever the Update command is encountered, for example, once with each propagation step.

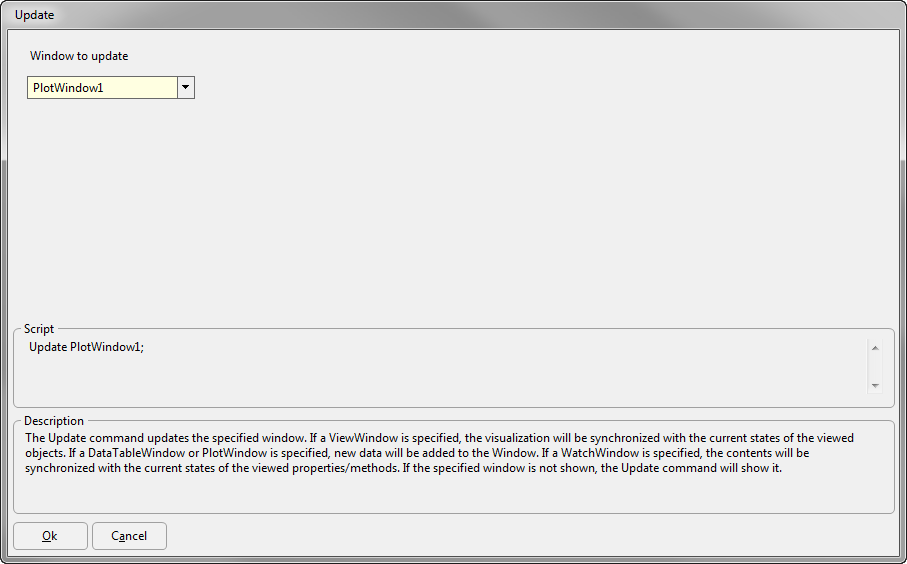

Command Editor

Window to update

•DataTableWindow

•PlotWindow

•ViewWindow

•WatchWindow



Script

•Displays the FreeFlyer Script that is generated by the editor



Description

•Displays descriptions of the editor and its fields

•Description text changes as the mouse pointer moves over the different fields within the editor







See Also

•ViewWindow Properties and Methods

•WatchWindow Properties and Methods

•PlotWindow Properties and Methods

•DataTableWindow Properties and Methods

•Generating Output Guide
